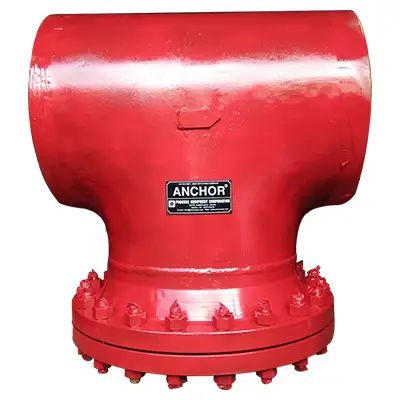

“T” Type Strainers

Technical Specification

Application  Coarse Filtration
  • Single basket element, mesh lining inside the basket
  • Easy maintenance and low down time
  • Low pressure drop
  • Recommended for coarse particle
  • Low cost solution
  • Jacketed available on request
ANSI class / Rating 150-1500#
Design Standard ANSI B 16.5
Testing Standard API 598
Size 50-600 mm NB
M.O.C A 105, ASTM A216 Gr WCB, ASTM A351 Gr CF8/CF8M/CF3/CF3M, Alloy-20, Hast-Alloy-B,C , Monel, AISI 304,304L,316, 316L, Duplex, Super Duplex etc.
Ends Butt Weld
