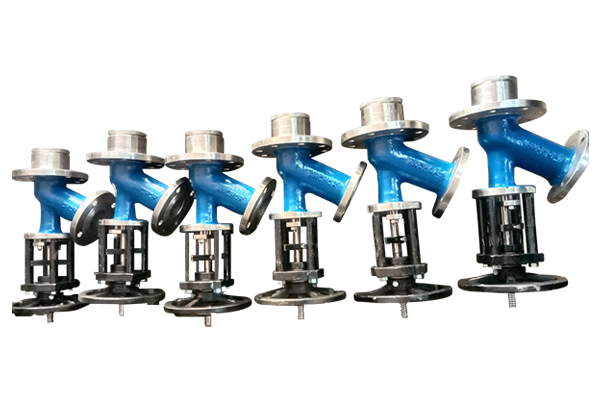

Flush Bottom Ball Valve

Flush Bottom Valves

Technical Specification

Application *Slurry * Viscous Liquids * Solidifying Liquids * High Temperature Liquids
Features/Benefits
  • Inside valve/vessel opening
  • Preciously control fluid flow
  • Plug-disc type and ram – piston type construction
  • Opening up to 90% of NB size
  • Jacketed valve on request
  • Stellited & resilient seat.
  • Full Automation on request
  • Temperature sensor is provided to measure mass temperature in the vessel
ANSI class / Rating 150-1500#
Design Standard ANSI B 16.5
Testing Standard API 598
Size 50-300 mm NB
M.O.C ASTM A216 Gr WCB, ASTM A351 Gr CF8/CF8M/CF3/CF3M, Alloy-20, Hast-Alloy-B,C , Monel, AISI 304,304L,316, 316L, Duplex, Super Duplex etc.
Ends Socket Weld, Butt Weld, Flange End, TCV Joints
Operation Manual, Pneumatic, Motorized, Gear operated

In process industries, many processes contain fluids which are difficult to handle with conventional valves-Ball, Gate, Globe etc. These fluids may be Highly Abrasive slurries, highly viscous liquids, liquids solidifying at ambient temperature or any other. For such liquids, we manufacture Y-type flush bottom valves.

The Valve flushes with vessel bottom from inside of the vessel – the seat barrel is extended to the bottom inner level. This will eliminate cylindrical cavity between valve seat & vessel bottom, thus identical conditions – temperature – prevail on valve seat & vessel bottom.

The valves are being manufactured in two designs –

  • Vessel Opening- Disc moves inside vessel, when opening-The feature of the design is it will burst/remove bottom obstacles-if any to clear passage for flowing of the fluids.

  • Valve Opening- Disc moves inside valve, when opening-This design is preferable when vessel doesn’t have space for inside movement of the disc.
  • Flush Bottom Ball Valves for Slurry
    Basket Strainers PDF

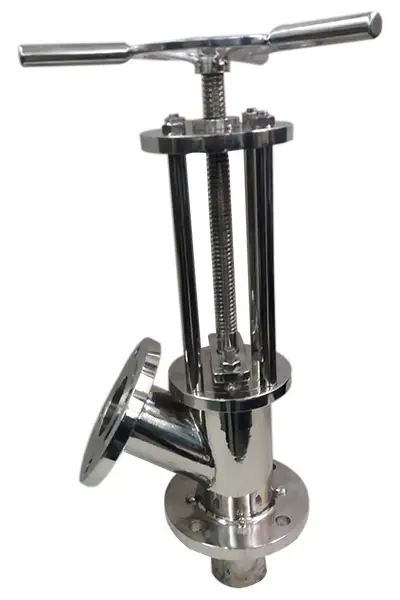

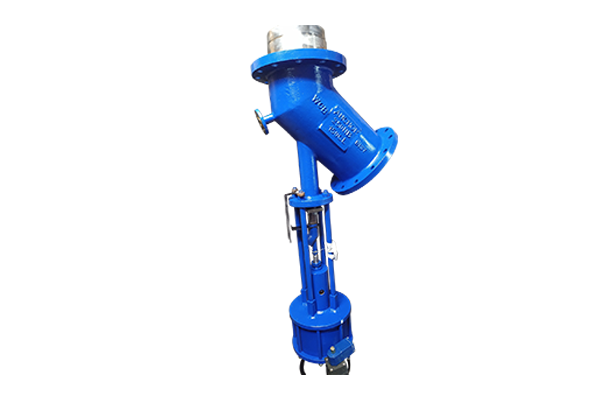

    Flush Bottom Valves Jacketed

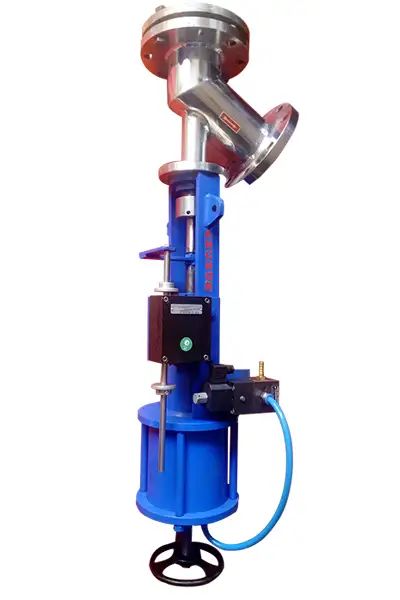

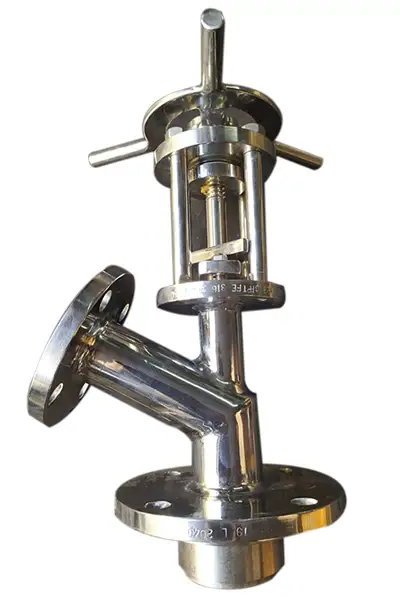

    Flush-Bottom Valves - Y-type

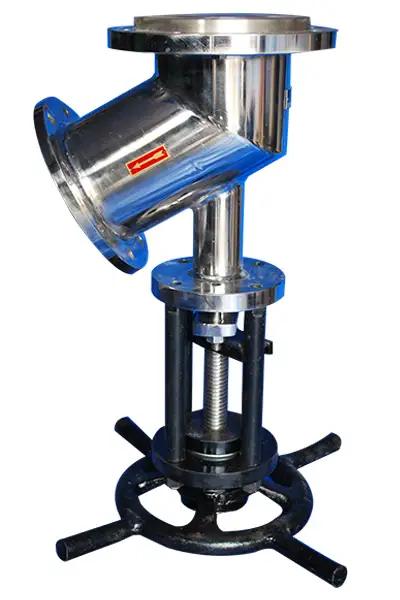

    Flush Bottom Valves Ram Type
